LTC6992-3 - Voltage-Controlled Pulse Width Modulator

Product Overview

Linear Technology

Part number	LTC6992-3
Manufacturer	Linear Technology
File Size	1.32 MB
Description	Voltage-Controlled Pulse Width Modulator
Datasheet	LTC6992-3 Datasheet
Note	This datasheet PDF includes multiple part numbers: LTC6992-3, LTC6992-1. Please refer to the document for exact specifications by model.

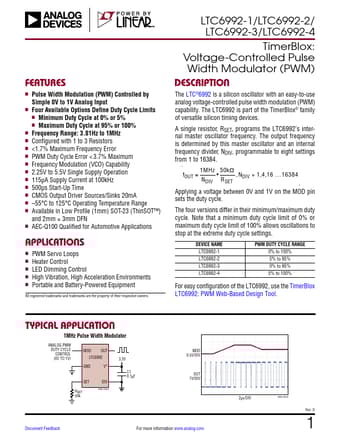

Additional preview pages of the LTC6992-3 datasheet.

The LTC®6992 is a silicon oscillator with an easy-to-use analog voltage-controlled pulse width modulation (PWM) capability. 50kΩ RSET , NDIV = 1

n Pulse Width Modulation (PWM) Controlled by Simple 0V to 1V Analog Input n Four Available Options Define Duty Cycle Limits n Minimum Duty Cycle at 0% or 5% n Maximum Duty Cycle at 95% or 100% n Frequency Range: 3.81Hz to 1MHz n Configured with 1 to 3 Resistors n.
