LT4356-2, LT4356-1 Datasheet - Linear

LT4356-2 Surge Stopper

The LT®4356 surge stopper protects loads from high voltage transients. It regulates the output during an overvoltage event, such as load dump in automobiles, by controlling the gate of an external N-channel MOSFET. The output is limited to a safe value thereby allowing the loads to continue function.

LT4356-2 Features

* n Stops High Voltage Surges n Adjustable Output Clamp Voltage n Overcurrent Protection n Wide Operation Range: 4V to 80V n Reverse Input Protection to

* 60V n Low 7μA Shutdown Current, LT4356-1 n Adjustable Fault Timer n Controls N-channel MOSFET n Shutdown Pin Withstands

* 60V to 100V

LT4356-1_LinearTechnology.pdf

This datasheet PDF includes multiple part numbers: LT4356-2, LT4356-1. Please refer to the document for exact specifications by model.

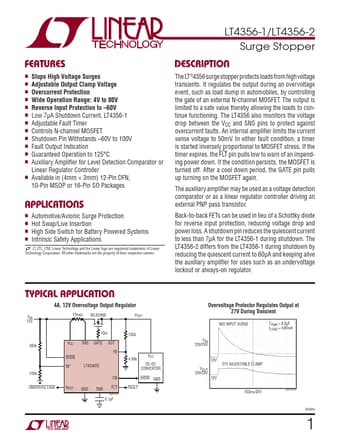

LT4356-2 Datasheet Preview Page 2 LT4356-2 Datasheet Preview Page 3

Datasheet Details

Part number:

LT4356-2, LT4356-1

Manufacturer:

Linear

File Size:

226.57 KB

Description:

Surge stopper.

Note:

This datasheet PDF includes multiple part numbers: LT4356-2, LT4356-1.
Please refer to the document for exact specifications by model.
