LTC1608 - Sampling A/D Converter

LTC1608 Description

+ U U LTC1608 High Speed, 16-Bit, 500ksps Sampling A/D Converter with Shutdown .

LTC1608 Features

* s A Complete, 500ksps 16-Bit ADC s 90dB S/(N+D) and
* 100dB THD (Typ) s Power Dissipation: 270mW (Typ) s No Pipeline Delay s No Missing Codes Over Temperature s Nap (7mW) and Sleep (10µW) Shutdown Modes s Operates with Internal 15ppm/°C Reference or External Reference s True Differential Inpu

📥 Download Datasheet

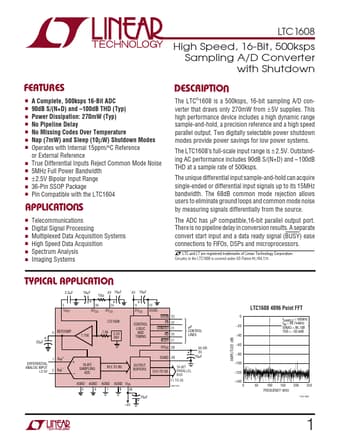

Preview of LTC1608 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LTC1608
Manufacturer
Linear
File Size
789.27 KB
Datasheet
LTC1608-Linear.pdf
Description
Sampling A/D Converter
