LTC1628-SYNC

2-Phase Synchronous Step-Down Switching Regulator

LTC1628-SYNC Features

* Out-of-Phase Controllers Reduce Required Input Capacitance and Power Supply Induced Noise

* OPTI-LOOP® Compensation Minimizes COUT

* Dual N-Channel MOSFET Synchronous Drive

* ±1% Output Voltage Accuracy

* Power Good Output Voltage Monitor

* Phase-Lockable Fixed Frequency 15

LTC1628-SYNC Datasheet (640.67 KB)

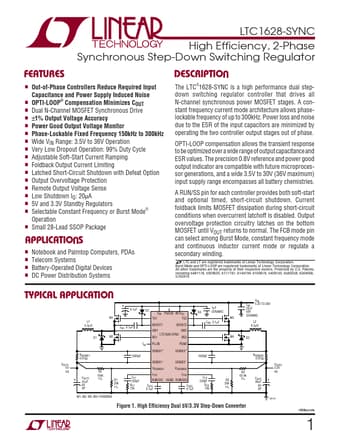

Preview of LTC1628-SYNC PDF

Datasheet Details

Part number:

LTC1628-SYNC

Manufacturer:

Linear

File Size:

640.67 KB

Description:

2-phase synchronous step-down switching regulator.
