LTC2336-18 - Fully Differential Input ADC

Product Overview

📥 Download Datasheet

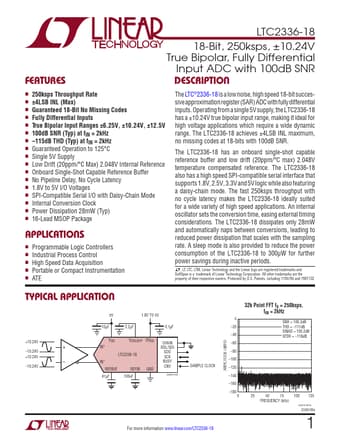

Datasheet preview – LTC2336-18

Datasheet Details

Part number LTC2336-18
Manufacturer Linear
File Size 738.55 KB
Description Fully Differential Input ADC
Datasheet download datasheet LTC2336-18 Datasheet
Additional preview pages of the LTC2336-18 datasheet.

Product details

Description

nn 250ksps Throughput Rate nn ±4LSB INL (Max) nn Guaranteed 18-Bit No Missing Codes nn Fully Differential Inputs nn True Bipolar Input Ranges ±6.25V, ±10.24V, ±12.5V nn 100dB SNR (Typ) at fIN = 2kHz nn 115dB THD (Typ) at fIN = 2kHz nn Guaranteed Operation to 125°C nn Single 5V Supply nn Low Drift (20ppm/°C Max) 2.048V Internal Reference nn Onboard Single-Shot Capable Reference Buffer nn No Pipeline Delay, No Cycle Latency nn 1.8V to 5V I/O Voltages nn SPI-Compatible Serial I/O with Dai
