LTC2309 - 12-Bit SAR ADC

Datasheet Summary

Description

n 12-Bit Resolution n Low Power: 1.5mW at 1ksps, 35µW Sleep Mode n 14ksps Throughput Rate n Low Noise: SNR = 73.4dB n Guaranteed No Missing Codes n Single 5V Supply n 2-Wire I2C Compatible Serial Interface with Nine Addresses Plus One Global for Synchronization n Fast Conversion Time: 1.3µs

Linear Technology Corporation

📥 Download Datasheet

Datasheet Details

Part number	LTC2309
Manufacturer	Linear Technology Corporation
File Size	1.61 MB
Description	12-Bit SAR ADC
Datasheet	LTC2309 Datasheet
Additional preview pages of the LTC2309 datasheet.

📁 Similar Datasheet

LTC2310-12 - 2Msps Differential Input ADC (Linear)
LTC2310-14 - 2Msps Differential Input ADC (Linear Technology)
LTC2310-16 - 16-Bit 2Msps Differential Input ADC (Linear)
LTC2311-12 - 5Msps Differential Input ADC (Analog Devices)
LTC2311-14 - 5Msps Differential Input ADC (Analog Devices)
LTC2311-16 - 5Msps Differential Input ADC (Linear Technology)
LTC2312 - N-Channel 20V MOSFET (LITE-ON)
LTC2312-12 - 500ksps Serial Sampling ADC (Linear Technology)
LTC2312-14 - 500ksps Serial Sampling ADC (Linear Technology)
LTC2313-12 - 2.5Msps Serial Sampling ADC (Linear)

Other Datasheets by Linear Technology Corporation

LTC2301 - 12-Bit ADCs
LTC2302 - 12-Bit ADC
LTC2305 - 12-Bit ADCs
LTC2306 - 12-Bit ADC
LTC2308 - 12-Bit ADC
LTC2373-18 - 8-Channel SAR ADC
LTC2379-18 - Low Power SAR ADC
LTC2173-12 - Low Power Quad ADC

Full PDF Text Transcription

Click to expand full text

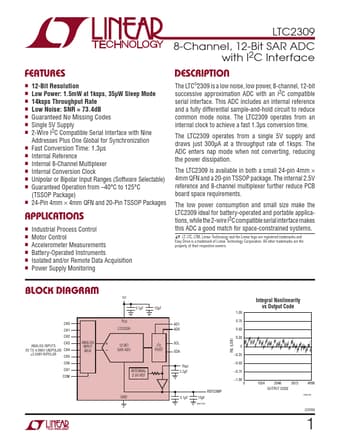

LTC2309 8-Channel, 12-Bit SAR ADC with I2C Interface Features Description n 12-Bit Resolution n Low Power: 1.5mW at 1ksps, 35µW Sleep Mode n 14ksps Throughput Rate n Low Noise: SNR = 73.4dB n Guaranteed No Missing Codes n Single 5V Supply n 2-Wire I2C Compatible Serial Interface with Nine Addresses Plus One Global for Synchronization n Fast Conversion Time: 1.
