LTC2311-16 - 5Msps Differential Input ADC

Datasheet Summary

Description

The LTC®2311-16 is a low noise, high speed 16-bit successive approximation register (SAR) ADC with differential inputs and wide input common mode range.

Features

  • n 5Msps Throughput Rate n ±3LSB INL (Typ), ±8LSB INL Guaranteed n Guaranteed 16-Bit, No Missing Codes n 8VP-P Differential Inputs with Wide Input Common Mode Range n 81dB SNR (Typ) at fIN = 2.2MHz n.
  • 90dB THD (Typ) at fIN = 2.2MHz n Guaranteed Operation.
  • 40°C to 125°C n Single 3.3V or 5V Supply n Low Drift (20ppm/°C Max) 2.048V or 4.096V Internal Reference with 1.25V External Reference Input n 1.8V to 2.5V I/O Voltages n CMOS or LVDS SPI-Compatible Serial I/O n Power Dissipation.

📥 Download Datasheet

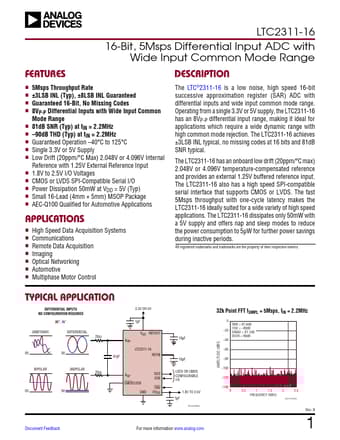

Datasheet preview – LTC2311-16

Datasheet Details

Part number LTC2311-16
Manufacturer Linear Technology
File Size 1.77 MB
Description 5Msps Differential Input ADC
Datasheet download datasheet LTC2311-16 Datasheet
Additional preview pages of the LTC2311-16 datasheet.

📁 Similar Datasheet

  • LTC2311-12 - 5Msps Differential Input ADC (Analog Devices)
  • LTC2311-14 - 5Msps Differential Input ADC (Analog Devices)
  • LTC2310-12 - 2Msps Differential Input ADC (Linear)
  • LTC2310-16 - 16-Bit 2Msps Differential Input ADC (Linear)
  • LTC2312 - N-Channel 20V MOSFET (LITE-ON)
  • LTC2313-12 - 2.5Msps Serial Sampling ADC (Linear)
  • LTC2313-14 - 14-Bit 2.5Msps Serial Sampling ADC (Linear)
  • LTC2301 - 12-Bit ADCs (Linear Technology Corporation)
  • LTC2302 - 12-Bit ADC (Linear Technology Corporation)
  • LTC2305 - 12-Bit ADCs (Linear Technology Corporation)
Other Datasheets by Linear Technology

Full PDF Text Transcription

Click to expand full text
LTC2311-16 16-Bit, 5Msps Differential Input ADC with Wide Input Common Mode Range FEATURES n 5Msps Throughput Rate n ±3LSB INL (Typ), ±8LSB INL Guaranteed n Guaranteed 16-Bit, No Missing Codes n 8VP-P Differential Inputs with Wide Input Common Mode Range n 81dB SNR (Typ) at fIN = 2.2MHz n –90dB THD (Typ) at fIN = 2.2MHz n Guaranteed Operation –40°C to 125°C n Single 3.3V or 5V Supply n Low Drift (20ppm/°C Max) 2.048V or 4.096V Internal Reference with 1.25V External Reference Input n 1.8V to 2.
