LTC2312-14

500ksps Serial Sampling ADC

LTC2312-14 Features

* n 500ksps Throughput Rate n No Cycle Latency n Guaranteed 14-Bit No Missing Codes n Single 3V or 5V Supply n Low Noise: 77.5dB SNR n Low Power: 9mW at 500ksps and 3V Supply n Low Drift (20ppm/°C Maximum) 2.048V or 4.096V Internal Reference n Sleep Mode with < 1µA Typical Supply Current n Nap Mode wi

LTC2312-14 General Description

The LTC®2312-14 is a 14-bit, 500ksps, serial sampling A/D converter that draws only 3.2mA from a single 3V or 5V supply. The LTC2312-14 contains an integrated low drift reference and reference buffer providing a low cost, high performance (20ppm/°C maximum) and space saving solution. The LTC2312-14.

LTC2312-14 Datasheet (2.20 MB)

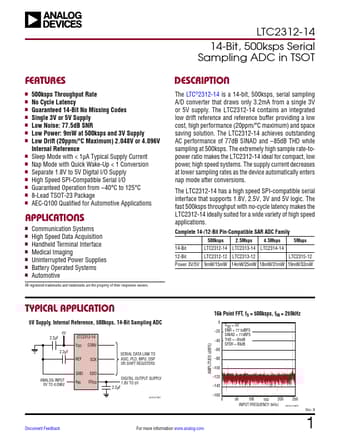

Preview of LTC2312-14 PDF

Datasheet Details

Part number:

LTC2312-14

Manufacturer:

Linear Technology

File Size:

2.20 MB

Description:

500ksps serial sampling adc.
