LTC2310-14 Datasheet PDF - Linear Technology 2Msps Differential Input ADC Specs

LTC2310-14 - 2Msps Differential Input ADC

Datasheet Summary

Description

nn 2Msps Throughput Rate nn ±2.5LSB INL Guaranteed nn Guaranteed 14-Bit, No Missing Codes nn 8VP-P Differential Inputs with Wide Input Common Mode Range nn 82dB SNR (Typ) at fIN = 500kHz nn 93dB THD (Typ) at fIN = 500kHz nn No Cycle Latency nn Guaranteed Operation 40°C to 125°C nn

Features

LTC2310-14 14-Bit + Sign, 2Msps Differential Input ADC with Wide Input Common Mode Range.

Datasheet Details

Part number	LTC2310-14
Manufacturer	Linear Technology
File Size	726.39 KB
Description	2Msps Differential Input ADC
Datasheet	LTC2310-14 Datasheet
Additional preview pages of the LTC2310-14 datasheet.

📁 Similar Datasheet

LTC2310-12 - 2Msps Differential Input ADC (Linear)

LTC2310-16 - 16-Bit 2Msps Differential Input ADC (Linear)

LTC2311-12 - 5Msps Differential Input ADC (Analog Devices)

LTC2311-14 - 5Msps Differential Input ADC (Analog Devices)

LTC2312 - N-Channel 20V MOSFET (LITE-ON)

LTC2313-12 - 2.5Msps Serial Sampling ADC (Linear)

LTC2313-14 - 14-Bit 2.5Msps Serial Sampling ADC (Linear)

LTC2301 - 12-Bit ADCs (Linear Technology Corporation)

LTC2302 - 12-Bit ADC (Linear Technology Corporation)

LTC2305 - 12-Bit ADCs (Linear Technology Corporation)

Full PDF Text Transcription

Click to expand full text

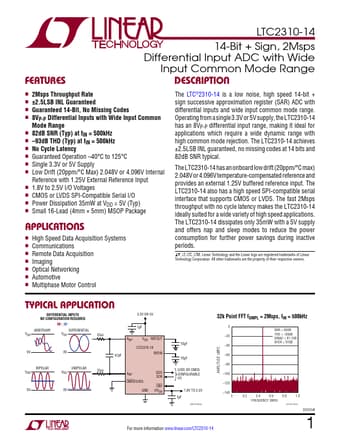

Features LTC2310-14 14-Bit + Sign, 2Msps Differential Input ADC with Wide Input Common Mode Range Description nn 2Msps Throughput Rate nn ±2.5LSB INL Guaranteed nn Guaranteed 14-Bit, No Missing Codes nn 8VP-P Differential Inputs with Wide Input Common Mode Range nn 82dB SNR (Typ) at fIN = 500kHz nn –93dB THD (Typ) at fIN = 500kHz nn No Cycle Latency nn Guaranteed Operation –40°C to 125°C nn Single 3.3V or 5V Supply nn Low Drift (20ppm/°C Max) 2.048V or 4.096V Internal Reference with 1.25V External Reference Input nn 1.8V to 2.
