LTC2310-16 - 16-Bit 2Msps Differential Input ADC

Datasheet Summary

Description

nn 2Msps Throughput Rate nn ±3LSB INL (Typ), ±8LSB INL Guaranteed nn Guaranteed 16-Bit, No Missing Codes nn 8VP-P Differential Inputs with Wide Input Common Mode Range nn 82dB SNR (Typ) at fIN = 500kHz nn 93dB THD (Typ) at fIN = 500kHz nn No Cycle Latency nn Guaranteed Operation 4

Features

LTC2310-16 16-Bit, 2Msps Differential Input ADC with Wide Input Common Mode Range.

Linear

📥 Download Datasheet

Datasheet Details

Part number	LTC2310-16
Manufacturer	Linear
File Size	739.79 KB
Description	16-Bit 2Msps Differential Input ADC
Datasheet	LTC2310-16 Datasheet

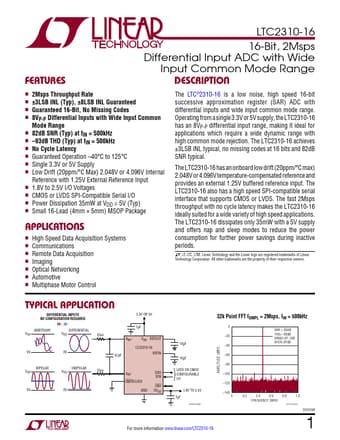

Additional preview pages of the LTC2310-16 datasheet.
