LTC2386-18 - 10Msps SAR ADC

Name: LTC2386-18
SKU: LTC2386-18-1410478

Linear

📥 Download Datasheet

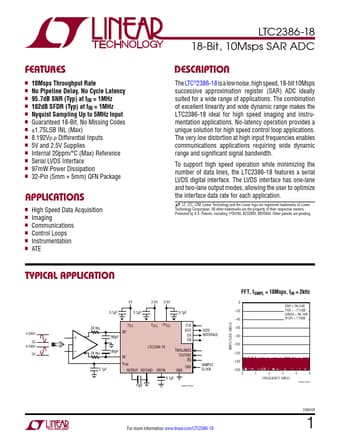

LTC2386-18 Datasheet Preview — Preview of LTC2386-18 PDF

Datasheet Details

Part number	LTC2386-18
Manufacturer	Linear
File Size	1.14 MB
Description	10Msps SAR ADC
Datasheet	LTC2386-18-Linear.pdf

LTC2386-18 Product details

Description

The LTC®2386-18 is a low noise, high speed, 18-bit 10Msps successive approximation register (SAR) ADC ideally suited for a wide range of applications.

Features

nn 10Msps Throughput Rate nn No Pipeline Delay, No Cycle Latency nn 95.7dB SNR (Typ) at fIN = 1MHz nn 102dB SFDR (Typ) at fIN = 1MHz nn Nyquist Sampling Up to 5MHz Input nn Guaranteed 18-Bit, No Missing Codes nn ±1.75LSB INL (Max) nn 8.192VP-P Differential Inputs nn 5V and 2.5V Supplies nn Internal 20ppm/°C (Max) Reference nn Serial LVDS Interface nn 97mW Power Dissipation nn 32-Pin (5mm × 5mm) QFN Package.
