LTC2387-18

15Msps SAR ADC

LTC2387-18 Features

* nn 15Msps Throughput Rate nn No Pipeline Delay, No Cycle Latency nn 95.7dB SNR (Typ) at fIN = 1MHz nn 102dB SFDR (Typ) at fIN = 1MHz nn Nyquist Sampling Up to 7.5MHz Input nn Guaranteed 18-Bit, No Missing Codes nn ±3LSB INL (Max) nn 8.192VP-P Differential Inputs nn 5V and 2.5V Supplies nn Internal 2

LTC2387-18 General Description

The LTC®2387-18 is a low noise, high speed, 18-bit 15Msps successive approximation register (SAR) ADC ideally suited for a wide range of applications. The combination of excellent linearity and wide dynamic range makes the LTC2387-18 ideal for high speed imaging and instrumentation applications. No .

LTC2387-18 Datasheet (1.04 MB)

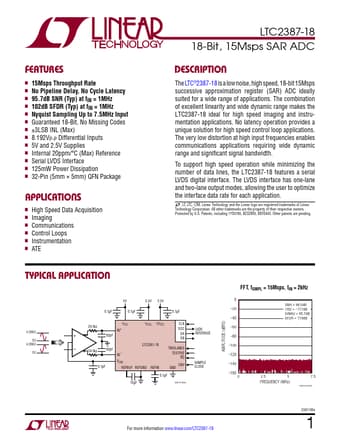

Preview of LTC2387-18 PDF
