LDT0826-50R Datasheet - LinkCom

LDT0826-50R Gate Drive Transformer

LinkCom Manufacturing Co.,Ltd LDT0826-50R Gate Drive Transformer RoHS Compliant Operating Temperature -40°C to +85°C Electrical Specifications @25℃ Inductance: PIN 4-6 = 296 uH min. @ 100KHz/0.1V/Series Leakage Inductance PIN 4-6 = 1.5 uH Max. @ 100KHz/0.1V/Series (PIN 1-3 Short) Interwinding Capacitance D.C.R PIN 1-4 = 20pF Max. @ 100KHz/0.1V/Series (PIN 1-3, 4-6 Short) PIN 1-3 = 1.3 ohm Max. PIN 4-6 = 1.3 ohm Max. Turn Ratio: PIN 1-3 : PIN 4-6 = 1.00±2% : 1 SRF PIN 1-6 = 1.5 MHz m.

LDT0826-50R-LinkCom.pdf

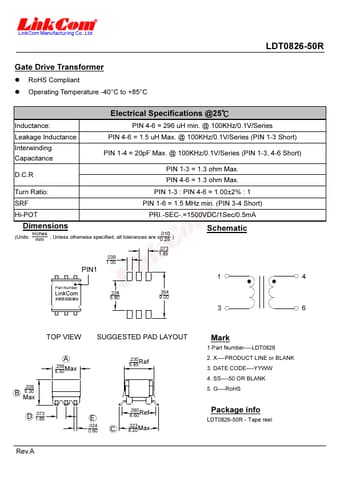

Preview of LDT0826-50R PDF

Datasheet Details

Part number:

LDT0826-50R

Manufacturer:

LinkCom

File Size:

56.57 KB

Description:

Gate drive transformer.
