LDT565630T-00, LDT565620T - Transformers

TDK

📥 Download Datasheet

LDT565630T-00 Datasheet Preview — This datasheet PDF includes multiple part numbers: LDT565630T-00, LDT565620T. Please refer to the document for exact specifications by model.

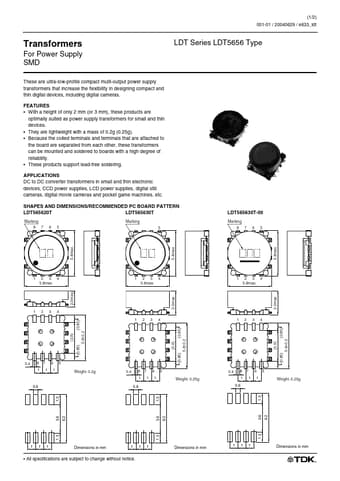

datasheet Preview Page 2

Datasheet Details

Part number: LDT565630T-00, LDT565620T
Manufacturer: TDK
File Size: 65.30 KB
Datasheet: LDT565620T-TDK.pdf
Description: Transformers
Note: This datasheet PDF includes multiple part numbers: LDT565630T-00, LDT565620T.
Please refer to the document for exact specifications by model.

LDT565630T-00 Product details

Features

With a height of only 2 mm (or 3 mm), these products are optimally suited as power supply transformers for small and thin devices.
They are lightweight with a mass of 0.2g (0.25g).
Because the coiled terminals and terminals that are attached to the board are separated from each other, these transformers can be mounted and soldered to boards with a high degree of reliability.
These products support lead-free soldering.
