LDT565630T-001 Datasheet - TDK

LDT565630T-001 SMD Transformers

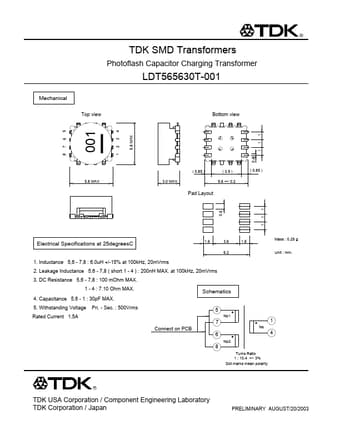

R TDK SMD Transformers Photoflash Capacitor Charging Transformer LDT565630T-001 Mechanical Top view Bottom view 5 001 4 5.8 MAX 6 3 7 2 8 1 ( 0.85 ) 5.8 MAX 3.0 MAX ( 3.9 ) 5.6 +/- 0.2 ( 0.85 ) Pad Layout 0.4 0.6 1 1 1 1 1 1 Electrical Specifications at 25degreesC 1. Inductance 5,6 - 7,8 : 6.0uH +/-15% at 100kHz, 20mVrms 1.6 3.6 6.2 1.6 Mass : 0.25 g Unit : mm. 2. Leakage Inductance 5,6 - 7,8 ( short 1 - 4 ) : 200nH MAX. at 100kHz, 20mVrms 3. DC Resistance 5,6 - 7,8 : 1.

LDT565630T-001-TDK.pdf

LDT565630T-001 Datasheet Preview — Preview of LDT565630T-001 PDF

Datasheet Details

Part number:

LDT565630T-001

Manufacturer:

TDK

File Size:

35.35 KB

Description:

Smd transformers.
