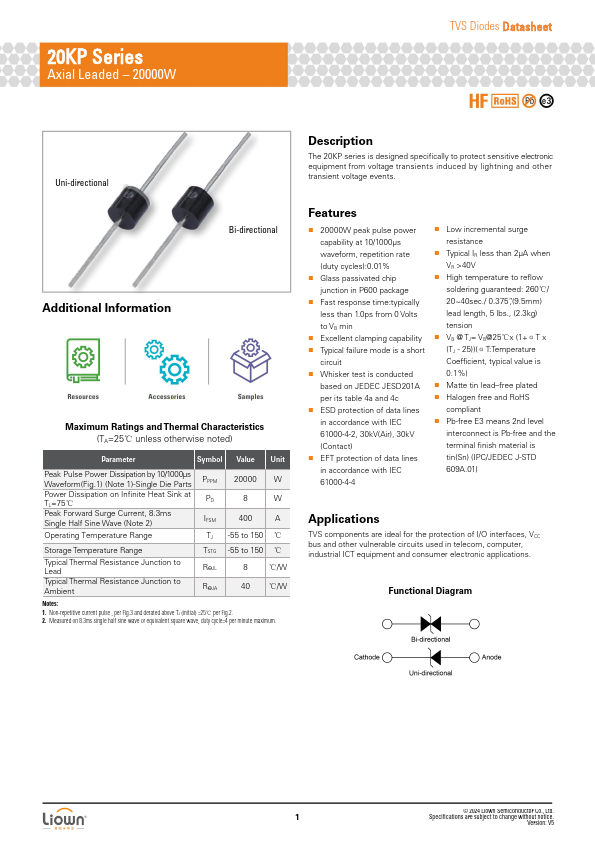

The 20KP series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Bi-directional Additional Information Maximum Ratings and Thermal Characteristics (TA=25℃ unless otherwise noted) Parameter Symbol V
20KP68CA Features
* 20000W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycles):0.01%
* Glass passivated chip junction in P600 package
* Fast response time:typically less than 1.0ps from 0 Volts to VB min
* Excellent clamping capability
* Typical failure mode is a shor
Datasheet Details
20KP68CA, 20KP17A
Liown
1.31 MB
20000w tvs diodes.
This datasheet PDF includes multiple part numbers: 20KP68CA, 20KP17A.
Please refer to the document for exact specifications by model.
