OB2269CP - Current Mode PWM Controller

This page provides the datasheet information for the OB2269CP, a member of the OB2269 Current Mode PWM Controller family.

Datasheet Summary

Description

OB2268/9 is a highly integrated current mode PWM control IC optimized for high performance, low standby power and cost effective offline flyback converter applications in above 20W power level.

PWM switching frequency at normal operation is externally programmable and trimmed to tight range.

Features

Extended Burst Mode Control For Improved Efficiency and Minimum Standby Power Design.
Audio Noise Free Operation.
External Programmable PWM Switching Frequency.
Internal Synchronized Slope Compensation.
Low VIN/VDD Startup Current(4uA) and Low Operating Current (2.3mA).
Leading Edge Blanking on Current Sense Input.
Complete Protection Coverage With Auto Self- Recovery o External Programmable Over Temperature Protection (OTP) o With or Without On-chip VDD OVP f.

Datasheet Details

Part number	OB2269CP
Manufacturer	LITEON
File Size	249.45 KB
Description	Current Mode PWM Controller
Datasheet	OB2269CP Datasheet

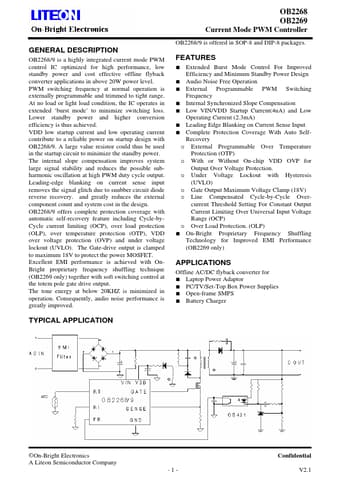

Additional preview pages of the OB2269CP datasheet.

📁 Similar Datasheet

OB2269C - Current Mode PWM Controller (On-Bright Electronics)

OB2269 - PWM controller (JSMICRO)

OB2269 - Flyback switching power supply applications (On-Bright Electronics)

OB2262 - Current Mode PWM Controller (On-Bright)

OB2263 - Current Mode PWM Controller (On-Bright)

OB2263 - Current Mode PWM Controller (Kexin)

OB2263AP - Current Mode PWM Controller (On-Bright)

OB2263CP - Current Mode PWM Controller (On-Bright)

OB2263MP - Current Mode PWM Controller (On-Bright)

OB2268 - Flyback switching power supply applications (On-Bright Electronics)

Full PDF Text Transcription

Click to expand full text

GENERAL DESCRIPTION OB2268/9 is a highly integrated current mode PWM control IC optimized for high performance, low standby power and cost effective offline flyback converter applications in above 20W power level. PWM switching frequency at normal operation is externally programmable and trimmed to tight range. At no load or light load condition, the IC operates in extended ‘burst mode’ to minimize switching loss. Lower standby power and higher conversion efficiency is thus achieved. VDD low startup current and low operating current contribute to a reliable power on startup design with OB2268/9. A large value resistor could thus be used in the startup circuit to minimize the standby power.
