OB2262, OB2262_On - Current Mode PWM Controller

OB2262 Description

OB2262 Current Mode PWM Controller GENERAL .
OB2262 is a highly integrated current mode PWM control IC optimized for high performance, low standby power and cost effective offline flyback convert.

OB2262 Features

* Extended Burst Mode Control For Improved Efficiency and Minimum Standby Power Design
* Audio Noise Free Operation Programmable PWM Switching
* External Frequency
* Internal Synchronized Slope Compensation
* Low VDD Startup Current and Low Operating Current (1.4mA)
* Leading Edge

OB2262 Applications

* in sub 30W range. PWM switching frequency at normal operation is externally programmable and trimmed to tight range. At no load or light load condition, the IC operates in extended ‘burst mode’ to minimize switching loss. Lower standby power and higher conversion efficiency is thus achieved. www. Dat

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: OB2262, OB2262_On. Please refer to the document for exact specifications by model.

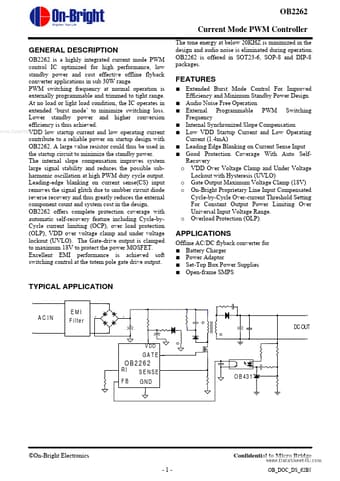

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
OB2262, OB2262_On
Manufacturer
On-Bright
File Size
421.69 KB
Datasheet
OB2262_On-Bright.pdf
Description
Current Mode PWM Controller
Note
This datasheet PDF includes multiple part numbers: OB2262, OB2262_On.
Please refer to the document for exact specifications by model.
