DSS2x101-02A 2 x 100A High-Performance Schottky Diode

Littelfuse

Description

DSS2x101-02A 200 V, 2 x 100 A High-Performance Schottky Diode Low Loss and Soft Recovery Parallel Legs .

📥 Download Datasheet

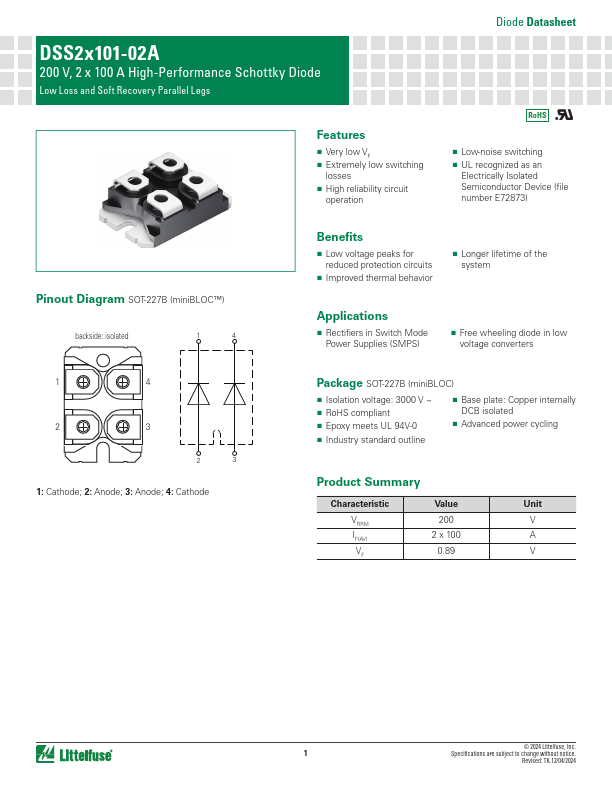

DSS2x101-02A Datasheet Preview — Preview of DSS2x101-02A PDF

Datasheet Specifications

Part number: DSS2x101-02A
Manufacturer: Littelfuse ↗
File Size: 462.01 KB
Datasheet: DSS2x101-02A-Littelfuse.pdf
Description: 2 x 100A High-Performance Schottky Diode

Features

* Very low VF
* Extremely low switching losses
* High reliability circuit operation Diode Datasheet RoHS
* Low-noise switching
* UL recognized as an Electrically Isolated Semiconductor Device (ﬁle number E72873) Pinout Diagram SOT-227B (miniBLOC™) backside: isolated 1 4 Ben

Applications

* Rectiﬁers in Switch Mode Power Supplies (SMPS)
* Free wheeling diode in low voltage converters 1 4 2 3 2 3 1: Cathode; 2: Anode; 3: Anode; 4: Cathode Package SOT-227B (miniBLOC)
* Isolation voltage: 3000 V ~
* RoHS compliant
* Epoxy meets UL 94V-0
* Industry stand
