LFCL250C3 Cable Limiters

3 Cable to Offset Bus 5 4/0 250MCM Straight Bus 350MCM to 500MCM Offset Bus 750MCM 4/0 250MCM 350MCM 500MCM 750MCM 4/0 250MCM 350MCM 500MCM 750MCM 6 Mole to Cable APPLICATIONS Service entrance conductors Between transformer or network bus and busway terminal boxes Large feeders with three or mo.

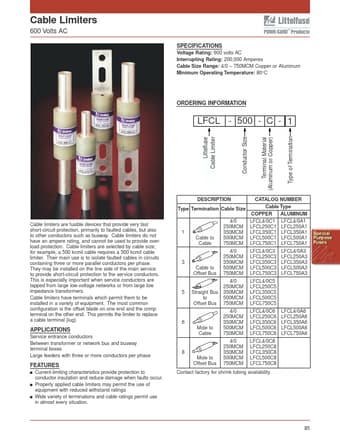

Cable Limiters 600 Volts AC SPECIFICATIONS Voltage Rating: 600 volts AC Interrupting Rating: 200,000 Amperes Cable Size Range: 4/0 750MCM Copper or Aluminum Minimum Operating Temperature: 80°C ORDERING INFORMATION LFCL - 500 - C - 1 Terminal Material (Aluminum or Copper) Type of Termination LFCL4/0A3 LFCL250A3 LFCL350A3 LFCL500A3 LFCL750A3 LFCL4/0A6 LFCL250A6 LFCL350A6 LFCL500A6 LFCL750A6 85 Cable limiters are fusible devices that provide very fast short-circuit protection, primaril.

LFCL250C3 Features

* s s s Current-limiting characteristics provide protection to conductor insulation and reduce damage when faults occur. Properly applied cable limiters may permit the use of equipment with reduced withstand ratings Wide variety of terminations and cable ratings permit use in almost every situation
