LFCG-2250+ Low Pass Filter

Ceramic Low Pass Filter 50Ω DC to 2250 MHz The Big Deal Very good rejection, 50 dB typical Rugged, ceramic construction Tiny size, 0.079" x 0.049" x 0.037" (0805) Excellent power handling, 4.5W LFCG-2250+ Generic photo used for illustration purposes only CASE STYLE: GE0805C-2 Product Overview Mini-Circuits’ LFCG-2250+ is an LTCC low pass filter with a passband from DC to 2250 MHz, supporting a variety of applications. This model provides 1.2 dB typical p.

LFCG-2250+ Features

* Feature Very good stopband rejection, 50 dB typical Advantages The LTCC lowpass filter provides a very good stopband rejection until 15 GHz suitable for high end applications. LTCC Construction Provides repeatable performance in a rugged, ceramic package well suited for tough environments such as

LFCG-2250+-Mini-Circuits.pdf

This datasheet PDF includes multiple part numbers: LFCG-2250+, LFCG-2250+-Mini. Please refer to the document for exact specifications by model.

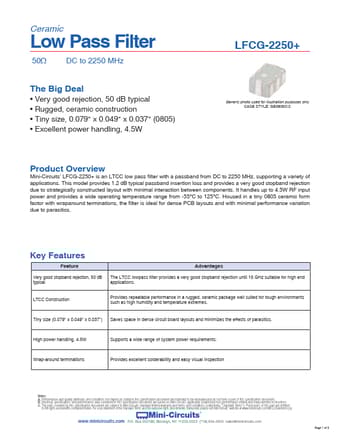

LFCG-2250+ Datasheet Preview Page 2 LFCG-2250+ Datasheet Preview Page 3

Datasheet Details

Part number:

LFCG-2250+, LFCG-2250+-Mini

Manufacturer:

Mini-Circuits

File Size:

378.86 KB

Description:

Low pass filter.

Note:

This datasheet PDF includes multiple part numbers: LFCG-2250+, LFCG-2250+-Mini.
Please refer to the document for exact specifications by model.
