LFCN-1000+ Datasheet, Filter, Mini-Circuits

LFCN-1000+ Features

• Filter y Excellent power handling, 10W y Small size y 7 sections y Temperature stable y LTCC construction y Protected by U.S Patent 6,943,646 APPLICATIONS y Harmonic rejection y VHF/UHF transm

PDF File Details

Part number:

LFCN-1000+

Manufacturer:

Mini-Circuits

File Size:

437.18kb

Download:

📄 Datasheet

Description:

Low pass filter.

LFCN-1000+ Application

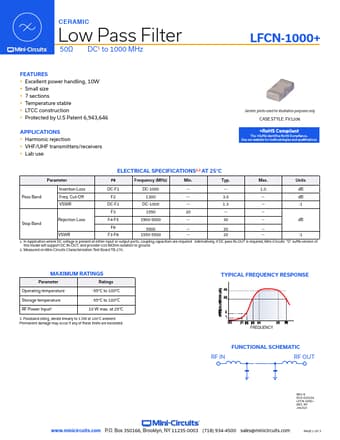

• Applications y Harmonic rejection y VHF/UHF transmitters/receivers y Lab use Generic photo used for illustration purposes only CASE STYLE: FV1206
