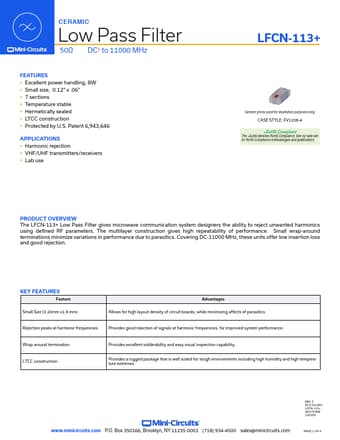

LFCN-113+ Datasheet, Filter, Mini-Circuits

LFCN-113+ Features

• Filter y Excellent power handling, 8W y Small size, 0.12” x .06” y 7 sections y Temperature stable y Hermetically sealed y LTCC construction y Protected by U.S. Patent 6,943,646 APPLICATIONS y

PDF File Details

Part number:

LFCN-113+

Manufacturer:

Mini-Circuits

File Size:

456.38kb

Download:

📄 Datasheet

Description:

Low pass filter.

LFCN-113+ Application

• Applications y Harmonic rejection y VHF/UHF transmitters/receivers y Lab use LFCN-113+ Generic photo used for illustration purposes only CASE STYLE
