LFCN-105 Datasheet, Filter, Mini-Circuits

LFCN-105 Features

• Filter
• excellent power handling, 8.5W small size 7 sections temperature stable patent pending harmonic

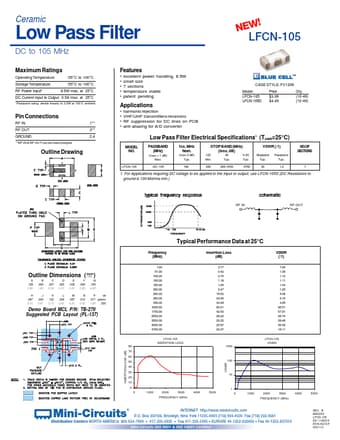

PDF File Details

Part number:

LFCN-105

Manufacturer:

Mini-Circuits

File Size:

137.47kb

Download:

📄 Datasheet

Description:

Ceramic low pass filter.

LFCN-105 Application

• Applications Pin Connections RF IN RF OUT GROUND
• RF IN & RF OUT can be interchanged 1
• 3
• 2,4
