LFCN-105+ Datasheet, Filter, Mini-Circuits

LFCN-105+ Features

• Filter y Excellent power handling, 8.5W y Small size y 7 sections y Temperature stable y LTCC construction y Protected by U.S Patent 6,943,646 APPLICATIONS y Harmonic rejection y VHF/UHF trans

PDF File Details

Part number:

LFCN-105+

Manufacturer:

Mini-Circuits

File Size:

431.49kb

Download:

📄 Datasheet

Description:

Low pass filter.

LFCN-105+ Application

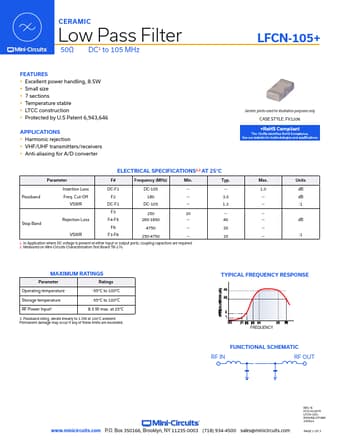

• Applications y Harmonic rejection y VHF/UHF transmitters/receivers y Anti-aliasing for A/D converter ELECTRICAL SPECIFICATIONS1,2 AT 25°C Paramete
