LFCN-1000 Datasheet, Filter, Mini-Circuits

✔ LFCN-1000 Features

excellent power handling, 10W
small size
7 sections
temperature stable
LTCC construction
protected by U.S Patent 6,943,646 Generic photo used for illustratio

✔ LFCN-1000 Application

harmonic rejection
VHF/UHF transmitters/receivers
lab use Electrical Specifications(1,2) at 25°C Par

PDF File Details

Mini-Circuits manufacturer logo

Part number:

LFCN-1000

Manufacturer:

Mini-Circuits

File Size:

299.21kb

Download:

📄 Datasheet

Description:

Low pass filter.

📥 Download PDF (299.21kb)

📁 Related Datasheet

LFCN-1000+ - Low Pass Filter (Mini-Circuits)

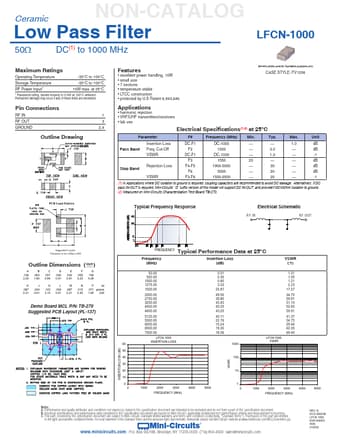

CERAMIC Low Pass Filter 50Ω DC1 to 1000 MHz LFCN-1000+ FEATURES y Excellent power handling, 10W y Small size y 7 sections y Temperature stable y LTC.
