LFCG-1000+ Low Pass Filter

Ceramic Low Pass Filter 50Ω DC to 1000 MHz The Big Deal Very good rejection, 45 dB typical Rugged, ceramic construction Tiny size, 0.079" x 0.049" x 0.037" (0805) Excellent power handling, 5.5W LFCG-1000+ Generic photo used for illustration purposes only CASE STYLE: GE0805C-2 Product Overview Mini-Circuits’ LFCG-1000+ is an LTCC low pass filter with a passband from DC to 1000 MHz, supporting a variety of applications. This model provides 0.8 dB typical p.

LFCG-1000+ Features

* Feature Very good stopband rejection, 45 dB typical Advantages The LTCC lowpass filter provides a very good stopband rejection until 10 GHz suitable for high end applications. LTCC Construction Provides repeatable performance in a rugged, ceramic package well suited for tough environments such as

LFCG-1000+-Mini-Circuits.pdf

This datasheet PDF includes multiple part numbers: LFCG-1000+, LFCG-1000+-Mini. Please refer to the document for exact specifications by model.

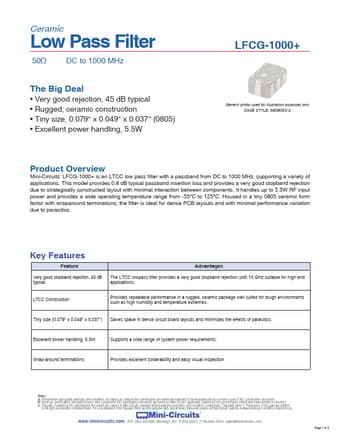

LFCG-1000+ Datasheet Preview Page 2 LFCG-1000+ Datasheet Preview Page 3

Datasheet Details

Part number:

LFCG-1000+, LFCG-1000+-Mini

Manufacturer:

Mini-Circuits

File Size:

381.31 KB

Description:

Low pass filter.

Note:

This datasheet PDF includes multiple part numbers: LFCG-1000+, LFCG-1000+-Mini.
Please refer to the document for exact specifications by model.
