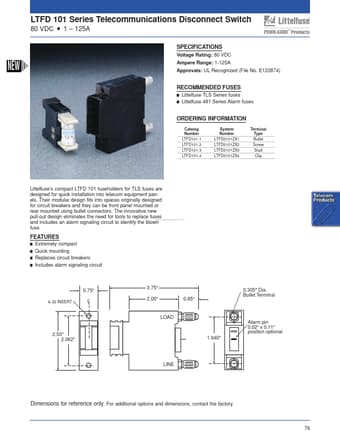

LTFD 101 Series Telecommunications Disconnect Switch 80 VDC I 1 125A SPECIFICATIONS Voltage Rating: 80 VDC NEW Ampere Range: 1-125A Approvals: UL Recognized (File No. E122874) RECOMMENDED FUSES I I Littelfuse TLS Series fuses Littelfuse 481 Series Alarm fuses ORDERING INFORMATION Catalog Number LTFD101-1 LTFD101-2 LTFD101-3 LTFD101-4 System Number LTFD0101ZX1 LTFD0101ZX2 LTFD0101ZX3 LTFD0101ZX4 Terminal Type Bullet Screw Stud Clip Littelfuse’s compact LTFD 101 fuseholders for TL.

LTFD101 Features

* I I I I Extremely compact Quick mounting Replaces circuit breakers Includes alarm signaling circuit 0.75" 6-32 INSERT C L 3.75" 2.00" 0.85" 0.305" Dia. Bullet Terminal LOAD Alarm pin 0.02" x 0.11" position optional 1.940" 2.50" 2.062" LINE Dimensions for reference only. For additional option
