SESD1103Q6UG-0020-090

TVS Diode Arrays

SESD1103Q6UG-0020-090 General Description

The SESD series Ultra Low Capacitance Diode Arrays provides signal integrity-preserving unidirectional ESD protection for the world’s most challenging high speed serial interfaces. Compelling packaging options including the standard 2.5mmx1.0mm layout, the SOD883, and board space-friendly 0802 and 1.

SESD1103Q6UG-0020-090 Datasheet (638.89 KB)

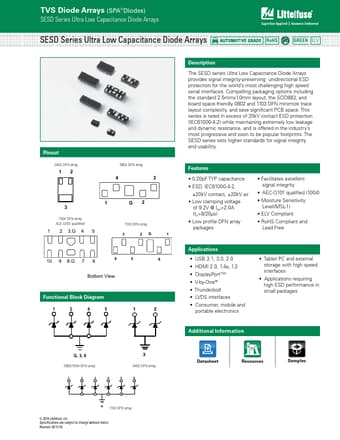

Preview of SESD1103Q6UG-0020-090 PDF

Datasheet Details

Part number:

SESD1103Q6UG-0020-090

Manufacturer:

Littelfuse ↗

File Size:

638.89 KB

Description:

Tvs diode arrays.
TVS Diode Arrays (SPA®Diodes) SESD Series Ultra Low Capacitance Diode Arrays SESD Series Ultra Low Capacitance Diode Arrays RoHS Pb GREEN ELV Pinout.
