SESD0201X1BN-0010-098, SESD0201X1UN-0020-090, TVS Diode Arrays

TVS Diode Array (SPA® Diodes) SESD Series Enhanced ESD Diode Arrays SESD Series Ultra Low Capacitance Discrete TVS RoHS Pb GREEN ELV Pinout 0201DFN .
The SESD Series Ultra Low Capacitance Discrete TVS provides unidirectional and bidirectional ESD protection for the most challenging high speed serial.

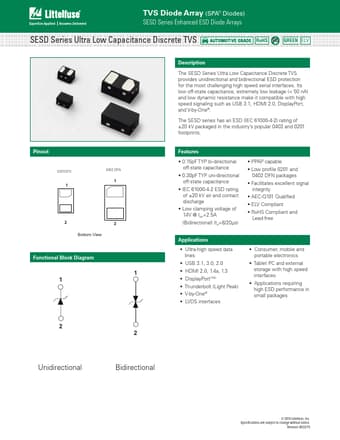

datasheet Preview Page 1 from Datasheet4u.com

SESD0201X1UN-0020-090-Littelfuse.pdf

SESD0201X1BN-0010-098 Datasheet Preview — This datasheet PDF includes multiple part numbers: SESD0201X1BN-0010-098, SESD0201X1UN-0020-090. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SESD0201X1BN-0010-098, SESD0201X1UN-0020-090

Manufacturer:

Littelfuse ↗

File Size:

1.18 MB

Description:

TVS Diode Arrays

Note:

This datasheet PDF includes multiple part numbers: SESD0201X1BN-0010-098, SESD0201X1UN-0020-090.
Please refer to the document for exact specifications by model.

Features

* 0.15pF TYP bi-directional off-state capacitance
* 0.30pF TYP uni-directional off-state capacitance
* IEC 61000-4-2 ESD rating of ±20 kV air and contact discharge
* Low clamping voltage of 14V @ IPP=2.5A (Bidirectional) (tP=8/20μs)
* PPAP capable

Applications

* Ultra-high speed data lines
* USB 3.1, 3.0, 2.0
* HDMI 2.0, 1.4a, 1.3
* DisplayPort(TM)
* Thunderbolt (Light Peak)
* V-by-One®
* LVDS interfaces
* Consumer, mobile and portable electronics
* Tablet PC and external storage wi
