SESD05LCDBD - 100W Surface Mount TVS

WILLAS

📥 Download Datasheet

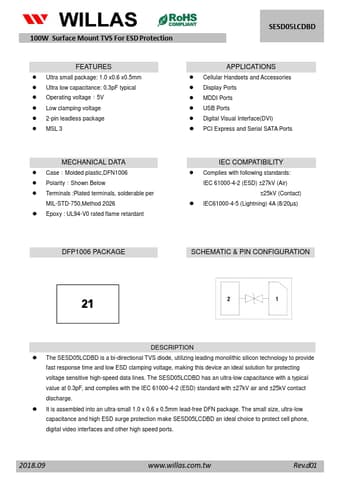

SESD05LCDBD Datasheet Preview — Preview of SESD05LCDBD PDF

Datasheet Details

Part number: SESD05LCDBD
Manufacturer: WILLAS
File Size: 957.25 KB
Datasheet: SESD05LCDBD-WILLAS.pdf
Description: 100W Surface Mount TVS

SESD05LCDBD Product details

Description

The SESD05LCDBD is a bi-directional TVS diode, utilizing leading monolithic silicon technology to provide fast response time and low ESD clamping voltage, making this device an ideal solution for protecting voltage sensitive high-speed data lines.The SESD05LCDBD has an ultra-low capacitance with a typical value at 0.3pF, and complies with the IEC 61000-4-2 (ESD) standard with ±27kV air and ±25kV contact discharge. It is assembled into an ultra-small 1.0 x 0.6 x 0.5mm lead-free DFN p

Features

Ultra small package: 1.0 x0.6 x0.5mm.
Ultra low capacitance: 0.3pF typical.
Operating voltage：5V.
Low clamping voltage.
2-pin leadless package.
MSL 3.
