SESD05 - 110W Transient Voltage Suppressors Diode

SeCoS

📥 Download Datasheet

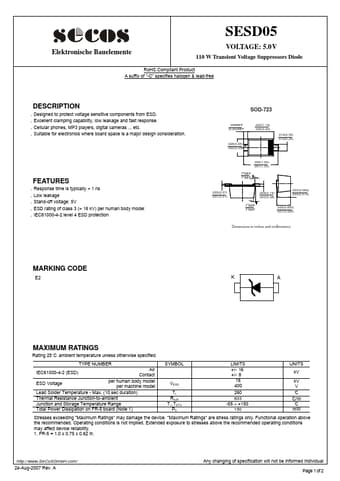

SESD05 Datasheet Preview — Preview of SESD05 PDF

datasheet Preview Page 2

Datasheet Details

Part number: SESD05
Manufacturer: SeCoS
File Size: 389.31 KB
Datasheet: SESD05-SeCoS.pdf
Description: 110W Transient Voltage Suppressors Diode

SESD05 Product details

Description

.

Features

. Response time is typically < 1 ns . Low leakage . Stand-off voltage: 5V . ESD rating of class 3 (> 16 kV) per human body model . IEC61000-4-2 level 4 ESD protection SOD-723 .008REF (0.20)REF .026(0.65) .022(0.55) .043(1.10) .035(0.90) .014(0.35) .010(0.25) .003(0.07) .001(0.01) .059(1.50) .051(1.30) 7oREF 7oREF .006(0.15) .003(0.08) .023(0.580) .020(0.515) 7oREF 7oREF .026(0.650) .021(0.525) Dimensions in inches and (millimeters).
