SESD0402X1BN-0010-098 TVS Diode Arrays

The SESD Series Ultra Low Capacitance Discrete TVS provides unidirectional and bidirectional ESD protection for the most challenging high speed serial interfaces. Its low off-state capacitance, extremely low leakage (< 50 nA) and low dynamic resistance make it compatible with high speed signaling su.

SESD0402X1BN-0010-098 Features

* 0.15pF TYP bi-directional off-state capacitance

* 0.30pF TYP uni-directional off-state capacitance

* IEC 61000-4-2 ESD rating of ±20 kV air and contact discharge

* Low clamping voltage of 14V @ IPP=2.5A (Bidirectional) (tP=8/20μs)

* PPAP capable

SESD0201X1UN-0020-090-Littelfuse.pdf

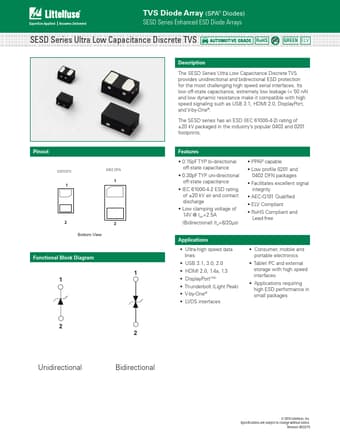

SESD0402X1BN-0010-098 Datasheet Preview — This datasheet PDF includes multiple part numbers: SESD0402X1BN-0010-098, SESD0201X1UN-0020-090. Please refer to the document for exact specifications by model.

SESD0402X1BN-0010-098 Datasheet Preview Page 2

SESD0402X1BN-0010-098 Datasheet Preview Page 3

Datasheet Details

Part number:

SESD0402X1BN-0010-098, SESD0201X1UN-0020-090

Manufacturer:

Littelfuse ↗

File Size:

1.18 MB

Description:

Tvs diode arrays.

Note:

This datasheet PDF includes multiple part numbers: SESD0402X1BN-0010-098, SESD0201X1UN-0020-090.
Please refer to the document for exact specifications by model.
