SV6025L1 Datasheet - Littelfuse

SV6025L1 25 Amp High Junction Temperature SCRs

This SVxx25xx high temperature SCR series is ideal for unidirectional switch applications such as phase control in heating, motor speed controls, converters/rectifiers and inrush current controllers. These SCRs have a low gate current, (IGT) trigger level of 6mA and 10mA maximum at approximately 1.5.

SV6025L1 Datasheet (436.06 KB)

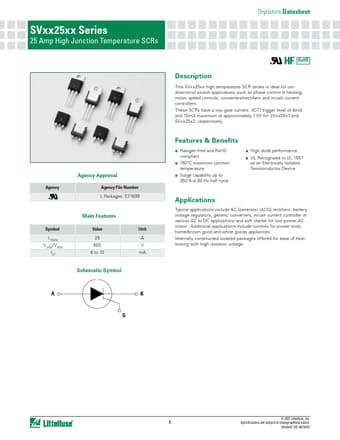

Preview of SV6025L1 PDF

Datasheet Details

Part number:

SV6025L1

Manufacturer:

Littelfuse ↗

File Size:

436.06 KB

Description:

25 amp high junction temperature scrs.
