SV6050NA2RP

50A High Junction Temperature SCR

SV6050NA2RP Features

* Halogen-free and RoHS compliant

* 150 °C maximum junction temperature

* High dv/dt performance up to 1000 V/µs

* Surge capability up to 550 A at 60 Hz half cycle

* AEC-Q101 qualified Applications

* Typical applications are AC solid-state switches, ph

SV6050NA2RP General Description

This SV6050xAx high temperature SCR series is ideal for unidirectional switch applications such as phase controls, motor speed controls, Solid State Relays, and inrush current controllers. Standard phase control SCRs are triggered with few milliamperes of current at less than 1.5 V potential. Featur.

SV6050NA2RP Datasheet (518.58 KB)

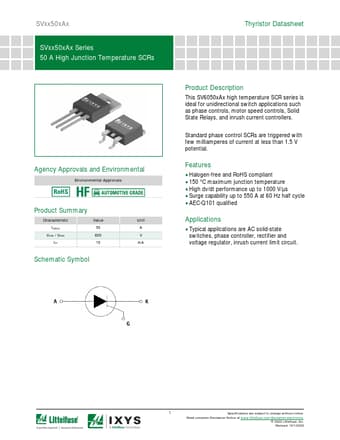

Preview of SV6050NA2RP PDF

Datasheet Details

Part number:

SV6050NA2RP

Manufacturer:

Littelfuse ↗

File Size:

518.58 KB

Description:

50a high junction temperature scr.
SVxx50xAx SVxx50xAx Series 50 A High Junction Temperature SCRs Agency Approvals and Environmental Environmental Approvals Product Summary Character.
