SV6050NA2TP, SV6050RA2TP Datasheet - Littelfuse

SV6050NA2TP 50A High Junction Temperature SCR

This SV6050xAx high temperature SCR series is ideal for unidirectional switch applications such as phase controls, motor speed controls, Solid State Relays, and inrush current controllers. Standard phase control SCRs are triggered with few milliamperes of current at less than 1.5 V potential. Featur.

SV6050NA2TP Features

* Halogen-free and RoHS compliant

* 150 °C maximum junction temperature

* High dv/dt performance up to 1000 V/µs

* Surge capability up to 550 A at 60 Hz half cycle

* AEC-Q101 qualified Applications

* Typical applications are AC solid-state switches, ph

SV6050RA2TP-Littelfuse.pdf

This datasheet PDF includes multiple part numbers: SV6050NA2TP, SV6050RA2TP. Please refer to the document for exact specifications by model.

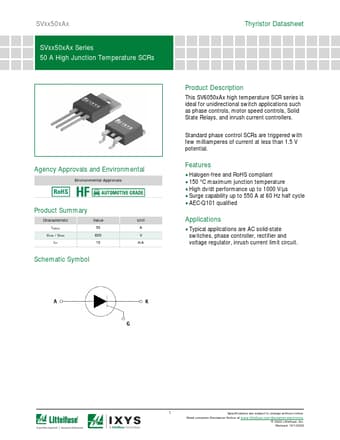

SV6050NA2TP Datasheet Preview Page 2 SV6050NA2TP Datasheet Preview Page 3

Datasheet Details

Part number:

SV6050NA2TP, SV6050RA2TP

Manufacturer:

Littelfuse ↗

File Size:

518.58 KB

Description:

50a high junction temperature scr.

Note:

This datasheet PDF includes multiple part numbers: SV6050NA2TP, SV6050RA2TP.
Please refer to the document for exact specifications by model.
