SZ1SMB36AT3G, SZ1SMB5.0AT3G TVS Diodes

SZ1SMB36AT3G Description

SZ1SMB Series Surface Mount TVS Diode Datasheet RoHS Pb e3 Bi-directional .
The SZ1SMB series is designed to protect voltage sensitive components from high voltage, high energy transients.

SZ1SMB36AT3G Features

* & Benefits
* Zener Transient Overvoltage Suppressors
* Working Peak Reverse Voltage Range
* 5.0 V to 170 V for uni-directional, and 10 V to 78 V for bi-directional
* Standard Avalanche Breakdown Voltage Range
* 6.4 V to 209 V for unidirectional, 11.1 V to 95.80 V for bi-di

SZ1SMB36AT3G Applications

* Uni-directional Web Resources Download ECAD models, order samples, and find technical recources at www. littelfuse. com Agency Agency Approvals Agency File Number E128662 Maximum Ratings and Thermal Characteristics Parameter Symbol Value Unit Peak Power Dissipation (Note 1) @ TL = 25°C, Pulse

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SZ1SMB36AT3G, SZ1SMB5.0AT3G. Please refer to the document for exact specifications by model.

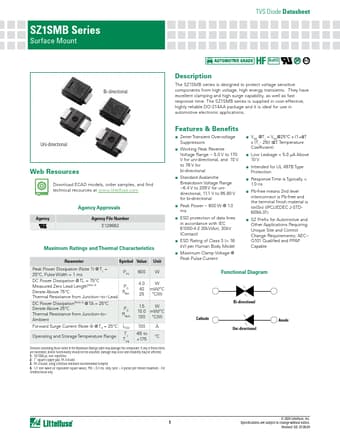

datasheet Preview Page 2 datasheet Preview Page 3
