SZ1SMB8.5AT3G, SZ1SMB5.0AT3G Datasheet - Littelfuse

SZ1SMB8.5AT3G - TVS Diodes

The SZ1SMB series is designed to protect voltage sensitive components from high voltage, high energy transients. They have excellent clamping and high surge capability, as well as fast response time. The SZ1SMB series is supplied in cost-effective, highly reliable DO-214AA package and it is ideal fo.

SZ1SMB8.5AT3G Features

* & Benefits

* Zener Transient Overvoltage Suppressors

* Working Peak Reverse Voltage Range

* 5.0 V to 170 V for uni-directional, and 10 V to 78 V for bi-directional

* Standard Avalanche Breakdown Voltage Range

* 6.4 V to 209 V for unidirectional, 11.1 V to 95.80 V for bi-di

SZ1SMB5.0AT3G-Littelfuse.pdf

This datasheet PDF includes multiple part numbers: SZ1SMB8.5AT3G, SZ1SMB5.0AT3G. Please refer to the document for exact specifications by model.

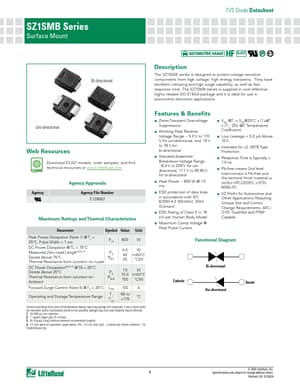

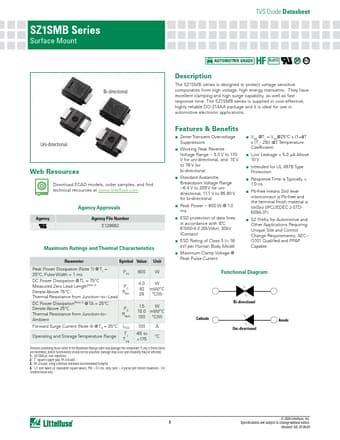

SZ1SMB8.5AT3G Datasheet Preview Page 2 SZ1SMB8.5AT3G Datasheet Preview Page 3

Datasheet Details

Part number:

SZ1SMB8.5AT3G, SZ1SMB5.0AT3G

Manufacturer:

Littelfuse ↗

File Size:

823.74 KB

Description:

Tvs diodes.

Note:

This datasheet PDF includes multiple part numbers: SZ1SMB8.5AT3G, SZ1SMB5.0AT3G.
Please refer to the document for exact specifications by model.
