LSG07N70

N-channel MOSFET

LSG07N70 Features

* Ultra low Rdson

* Ultra low gate charge (typ. Qg = 19nC)

* 100% UIS tested

* RoHS compliant Applications

* Power faction correction (PFC).

* Switched mode power supplies (SMPS).

* Uninterruptible power supply (UPS). TO-251 TO-252 TO-220 TO-220F D G S N-Channel MOSF

LSG07N70 General Description

LonFETTM Power MOSFET is fabricated using advanced super junction technology. The resulting device has extremely low on resistance, making it especially suitable for applications which require superior power density and outstanding efficiency. Product Summary VDS @ Tj,max 750V RDS(on),max 0.57Ω.

LSG07N70 Datasheet (818.04 KB)

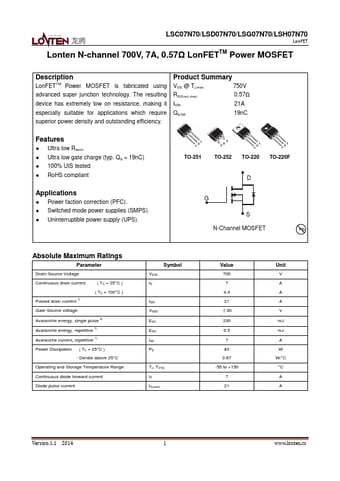

LSG07N70 Datasheet Preview — Preview of LSG07N70 PDF

Datasheet Details

Part number:

LSG07N70

Manufacturer:

Lonten

File Size:

818.04 KB

Description:

N-channel mosfet.
