LP28009 - Single and Dual Cell Li+ Battery Charger IC

LP28009 Description

Preliminary Datasheet LP28009 Single and Dual Cell Li+ Battery Charger IC *LP28009 General .
The LP28009 is a fully integrated low cost single-cell and dual cell Li-Ion battery charger IC ideal for portable applications.

LP28009 Features

* 18V maximum rating voltages for AC adapter. The other features are under voltage protection, over voltage protection for AC adapter supply and battery temperature monitoring. Order Information LP28009
* F: Pb-Free Package Type SP: SOP-8(EP) Output Volt

LP28009 Applications

* The LP28009 is capable of being powered up from AC adapter. The LP28009 enters sleep mode when AC adapter is removed. The LP28009 optimizes the charging task by using a control algorithm including preconditioning mode, fast charge mode and constant voltage mode. The charging task is terminated as t

📥 Download Datasheet

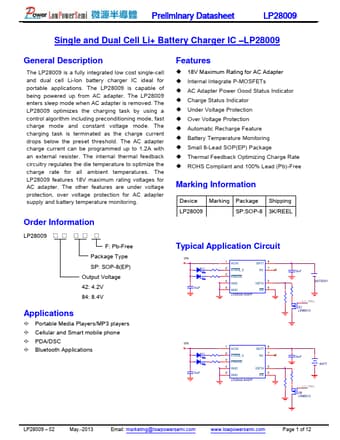

Preview of LP28009 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LP28009
Manufacturer
Low Power Semi
File Size
691.53 KB
Datasheet
LP28009-LowPowerSemi.pdf
Description
Single and Dual Cell Li+ Battery Charger IC
