LP28052

1.2A Single-chip Li-ion and Li-POL Charge

LP28052 Features

* include charge current monitor, undervoltage lockout, automatic recharge and a status pin to indicate charge termination and the presence of an input voltage. Features zVery Low Power Dissipation zVin Over Voltage Protection:6.5V zShort-circuit protection zProgrammable Charge Current Up to 1500mA z

LP28052 General Description

The LP28052 is a complete constant-current/ constantvoltage linear charger for single cell lithium-ion batteries. Its TDFN-10 package and low external component count make the LP28052 ideally suited for portable applications. Furthermore, the LP28052 is specifically designed to work within USB power.

LP28052 Datasheet (455.50 KB)

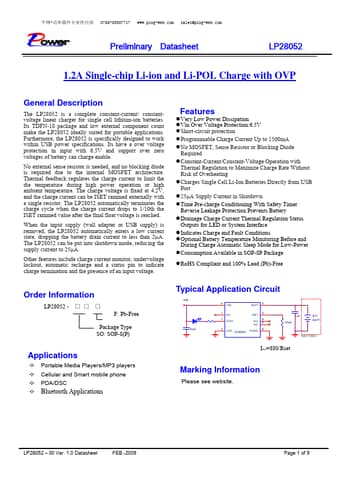

Preview of LP28052 PDF

Datasheet Details

Part number:

LP28052

Manufacturer:

POWER

File Size:

455.50 KB

Description:

1.2a single-chip li-ion and li-pol charge.
- 0755-83307717 www.ping-web.com sales@ping-web.com Preliminary Datasheet LP28052 1.2A Single-chip Li-ion and Li-POL Charge with OVP General Descri.
