LP28006 - Single and Dual Cell Li+ Battery Charger IC

LP28006 Description

Preliminary Datasheet LP28006 Single and Dual Cell Li+ Battery Charger IC *LP28006 General .
The LP28006 is a fully integrated low cost single-cell Li-Ion battery charger IC ideal for portable applications.

LP28006 Features

* 18V maximum rating voltages for AC adapter. The other features are under voltage protection, over voltage protection for AC adapter supply and battery temperature monitoring. Order Information LP28006 -
* F: Pb-Free Package Type QV: TDFN-10 Output V

LP28006 Applications

* The LP28006 is capable of being powered up from AC adapter. The LP28006 enters sleep mode when AC adapter is removed. The LP28006 optimizes the charging task by using a control algorithm including preconditioning mode, fast charge mode and constant voltage mode. The charging task is terminated as t

📥 Download Datasheet

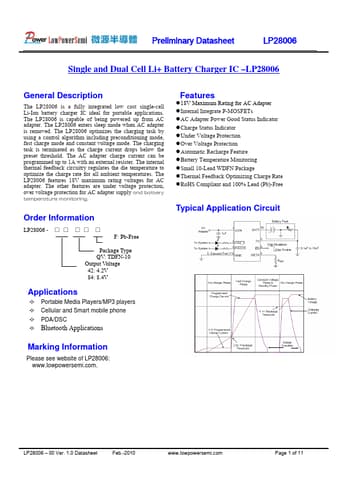

Preview of LP28006 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LP28006
Manufacturer
Low Power Semi
File Size
651.41 KB
Datasheet
LP28006-LowPowerSemi.pdf
Description
Single and Dual Cell Li+ Battery Charger IC
