LP4055 800mA Linear Li-Ion Battery Charger

LP4055 Description

Preliminary Datasheet LP4055 800mA Linear Li-Ion Battery Charger with Protection of Reverse Connection of Battery General .
The LP4055 is a complete constant-current/constant- voltage linear charger for single cell lithium-ion batteries.

LP4055 Features

* include charge current monitor, automatic recharge and a status pin to indicate charge termination. Order Information LP4055
* BAT Voltage Default: 4.2V 43: 4.35V F: Pb-Free Package Type B5: SOT23-5 QV:TDFN-6 Features
* Programmable Charge Current

LP4055 Applications

* Furthermore, the LP4055 is specifically designed to work within USB power specifications. No external sense resistor is needed, and no blocking diode is required due to the internal MOSFET architecture. Thermal feedback regulates the charge current to limit the die temperature during high power ope

📥 Download Datasheet

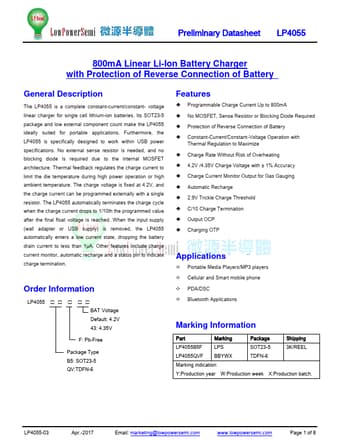

Preview of LP4055 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LP4055
Manufacturer
Lowpowersemi
File Size
523.92 KB
Datasheet
LP4055-Lowpowersemi.pdf
Description
800mA Linear Li-Ion Battery Charger
