LP4076H - 1A Single Chip Li-Ion and Li-Polymer Charger

Datasheet Summary

Description

The LP4076H is a complete constant-current/ constant voltage linear charger for single cell lithium-ion battery.

Its ESOP8 package and low external component count make the device ideally suited for portable applications.

Features

  • include charge current monitor, under voltage lockout, automatic recharge and charge status pins. Order Information LP4076H Battery Voltage Default: 4.2V 435: 4.35V F: Pb-Free Package Type SP: ESOP8 Features.
  • Input Voltage up to 28V.
  • Input Over Voltage Protection：7V.
  • Short-circuit protection.
  • Programmable Charge Current up to 1A.
  • 1µA Battery Reverse Current.
  • Protection of Reverse Connection of Battery.
  • No MOSFET, Sense Resistor or Blocking Diode Required.

📥 Download Datasheet

Datasheet preview – LP4076H

Datasheet Details

Part number LP4076H
Manufacturer Lowpowersemi
File Size 477.50 KB
Description 1A Single Chip Li-Ion and Li-Polymer Charger
Datasheet download datasheet LP4076H Datasheet

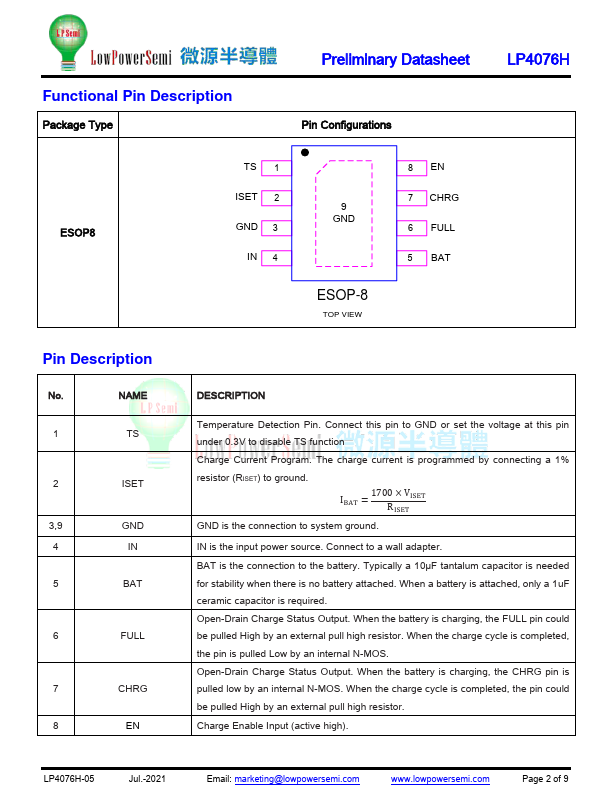

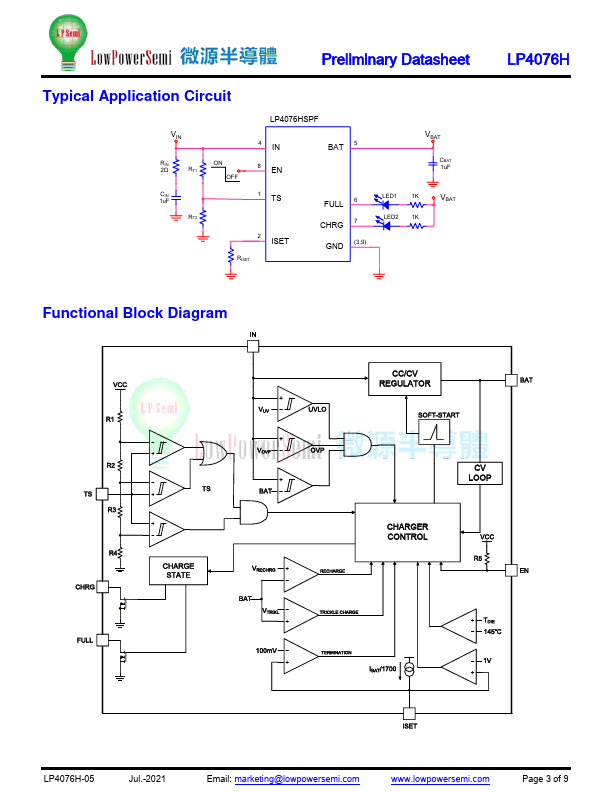

Additional preview pages of the LP4076H datasheet.

📁 Similar Datasheet

  • LP4001 - 10Base-T Isolation Transformers (Link-PP)
  • LP4005 - 10Base-T Isolation Transformers (Link-PP)
  • LP4054 - 600mA Standalone Linear Li-Ion Battery Charger (Power)
  • LP4101LT1G - 20V P-Channel MOSFET (LRC)
  • LP4101LT3G - 20V P-Channel MOSFET (LRC)
  • LP41604 - 10/100Base PC Card Lan Magnetic (Link-PP)
  • LP431 - Programmable Precision Shunt Regulator (HTC)
  • LP435SM - 10Base-T Isolation Transformers (Link-PP)
  • LP4410 - POWER TRANSFORMERS (apx)
  • LP467SM - 10Base-T Isolation Transformers (Link-PP)
Other Datasheets by Lowpowersemi
  • LP4054 - 500mA Standalone Linear Li-Ion Battery Charger
  • LP4055 - 800mA Linear Li-Ion Battery Charger
  • LP4056 - 1A/800mA Standalone Linear Li-Ion Battery Charger
  • LP4060 - 800mA Standalone Linear Li-Ion Battery Charger
  • LP4060A - 800mA Standalone Linear Li-Ion Battery Charger
  • LP4061 - 800mA Standalone Linear Li-Ion Battery Charger
  • LP4062 - 600mA Standalone Linear Li-Ion Battery Charger

Full PDF Text Transcription

Click to expand full text

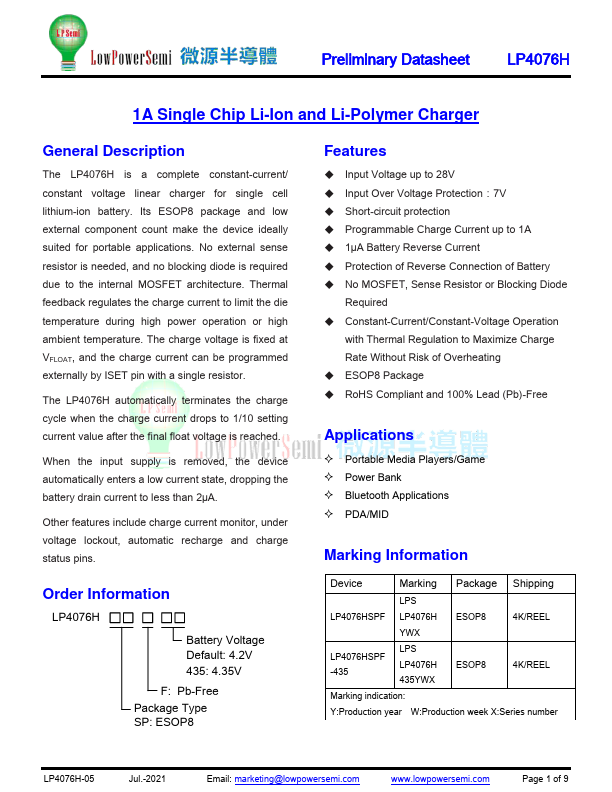

Preliminary Datasheet LP4076H 1A Single Chip Li-Ion and Li-Polymer Charger General Description The LP4076H is a complete constant-current/ constant voltage linear charger for single cell lithium-ion battery. Its ESOP8 package and low external component count make the device ideally suited for portable applications. No external sense resistor is needed, and no blocking diode is required due to the internal MOSFET architecture. Thermal feedback regulates the charge current to limit the die temperature during high power operation or high ambient temperature. The charge voltage is fixed at VFLOAT, and the charge current can be programmed externally by ISET pin with a single resistor.
