LP78073A

1A Charge+ 2.7A Synchronous Boost PMIC

LP78073A Features

* include charge current monitor, under voltage lockout, automatic recharge and a status pin to indicate charge termination and the presence of an input voltage. Boost converter is Synchronous current mode boost DC-DC converter. Its PWM circuitry with built-in 2.7A Current power MOSFET makes this conv

LP78073A General Description

The LP78073A is a PMIC,which has 1ch Charger and 1ch Synchronous Boost Converter with ESOP-8 package. Its charger is a complete constant-current constant voltage linear charger for single cell lithium-ion batteries. Furthermore, the LP78073A is specifically designed to work within USB power specific.

LP78073A Datasheet (574.51 KB)

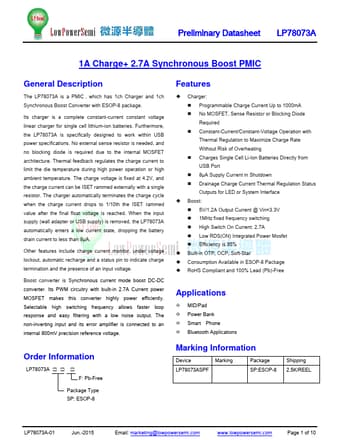

Preview of LP78073A PDF

Datasheet Details

Part number:

LP78073A

Manufacturer:

Lowpowersemi

File Size:

574.51 KB

Description:

1a charge+ 2.7a synchronous boost pmic.
