LP750, 0.5 W POWER PHEMT

0.5 W POWER PHEMT * .
AND APPLICATIONS The LP750 is an Aluminum Gallium Arsenide / Indium Gallium Arsenide (AlGaAs/InGaAs) Pseudomorphic High Electron Mobility Transistor (.

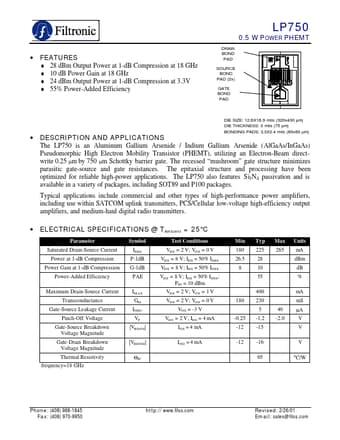

datasheet Preview Page 1 from Datasheet4u.com

LP750_FiltronicCompoundSemiconductors.pdf

LP750 Datasheet Preview — Preview of LP750 PDF

Datasheet Details

Part number:

LP750

Manufacturer:

Filtronic Compound Semiconductors

File Size:

34.36 KB

Description:

0.5 W POWER PHEMT

Features

* 28 dBm Output Power at 1-dB Compression at 18 GHz
* 10 dB Power Gain at 18 GHz
* 24 dBm Output Power at 1-dB Compression at 3.3V
* 55% Power-Added Efficiency DRAIN BOND PAD SOURCE BOND PAD (2x) GATE BOND PAD LP750

Applications

* The LP750 is an Aluminum Gallium Arsenide / Indium Gallium Arsenide (AlGaAs/InGaAs) Pseudomorphic High Electron Mobility Transistor (PHEMT), utilizing an Electron-Beam directwrite 0.25 µm by 750 µm Schottky barrier gate. The recessed “mushroom” gate structure minimizes parasitic gate-source and gate
