LP7512P70 - PACKAGED ULTRA LOW NOISE PHEMT

Datasheet Summary

Description

AND APPLICATIONS The LP7512P70 is a packaged Aluminum Gallium Arsenide / Indium Gallium Arsenide (AlGaAs/InGaAs) Pseudomorphic High Electron Mobility Transistor (PHEMT), utilizing an Electron-Beam direct-write 0.25 µ m by 200 µ m Schottky barrier gate.

Features

  • S.
  • 0.7 dB Noise Figure at 12 GHz.
  • 12 dB Associated Gain at 12 GHz.
  • 0.4 dB Noise Figure at 2 GHz.
  • 18 dB Associated Gain at 2 GHz.
  • Low DC Power Consumption: 30mW LP7512P70.

📥 Download Datasheet

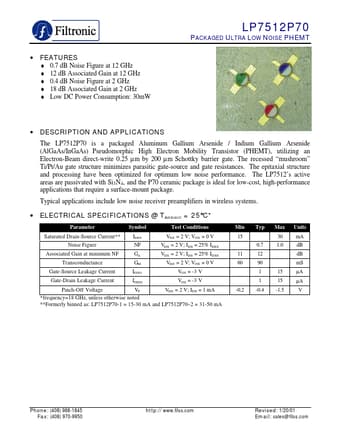

Datasheet preview – LP7512P70

Datasheet Details

Part number LP7512P70
Manufacturer Filtronic Compound Semiconductors
File Size 59.88 KB
Description PACKAGED ULTRA LOW NOISE PHEMT
Datasheet download datasheet LP7512P70 Datasheet
Additional preview pages of the LP7512P70 datasheet.

📁 Similar Datasheet

Other Datasheets by Filtronic Compound Semiconductors
  • LP7512 - ULTRA LOW NOISE PHEMT
  • LP750 - 0.5 W POWER PHEMT
  • LP750P100 - PACKAGED 0.5 WATT POWER PHEMT
  • LP750SOT89 - LOW NOISE/ HIGH LINEARITY PACKAGED PHEMT
  • LP7612 - HIGH DYNAMIC RANGE PHEMT
  • LP7612P70 - PACKAGED HIGH DYNAMIC RANGE PHEMT

Full PDF Text Transcription

Click to expand full text
PACKAGED ULTRA LOW NOISE PHEMT • FEATURES ♦ 0.7 dB Noise Figure at 12 GHz ♦ 12 dB Associated Gain at 12 GHz ♦ 0.4 dB Noise Figure at 2 GHz ♦ 18 dB Associated Gain at 2 GHz ♦ Low DC Power Consumption: 30mW LP7512P70 • DESCRIPTION AND APPLICATIONS The LP7512P70 is a packaged Aluminum Gallium Arsenide / Indium Gallium Arsenide (AlGaAs/InGaAs) Pseudomorphic High Electron Mobility Transistor (PHEMT), utilizing an Electron-Beam direct-write 0.25 µ m by 200 µ m Schottky barrier gate. The recessed “mushroom” Ti/Pt/Au gate structure minimizes parasitic gate-source and gate resistances. The epitaxial structure and processing have been optimized for optimum low noise performance.
