LP7612P70 - PACKAGED HIGH DYNAMIC RANGE PHEMT

Datasheet Summary

Description

AND APPLICATIONS The LP7612P70 is a packaged Aluminum Gallium Arsenide / Indium Gallium Arsenide (AlGaAs/InGaAs) pseudomorphic High Electron Mobility Transistor (pHEMT), utilizing an Electron-Beam direct-write 0.25 µ m by 200 µ m Schottky barrier gate.

Features

  • S.
  • 20 dBm Output Power at 1-dB Compression at 18 GHz.
  • 7.5 dB Power Gain at 18 GHz.
  • 16 dB Small Signal Gain at 2 GHz.
  • 0.8 dB Noise Figure at 2 GHz LP7612P70.

📥 Download Datasheet

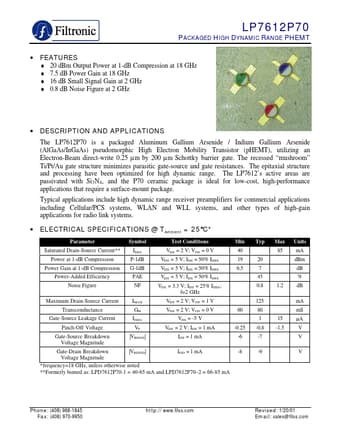

Datasheet preview – LP7612P70

Datasheet Details

Part number LP7612P70
Manufacturer Filtronic Compound Semiconductors
File Size 61.51 KB
Description PACKAGED HIGH DYNAMIC RANGE PHEMT
Datasheet download datasheet LP7612P70 Datasheet
Additional preview pages of the LP7612P70 datasheet.

📁 Similar Datasheet

  • LP7618B - 6 sound alarm 6 key independent or combined cycle-IC (LAND-HOP MICRO-ELECTRONICS)
  • LP7618B - 6 sound alarm 6 key independent or combined cycle-IC (Silvan Chip)
  • LP701 - SILICON GATE ENHANCEMENT MODE RF POWER LDMOS TRANSISTOR (Polyfet RF Devices)
  • LP702 - SILICON GATE ENHANCEMENT MODE RF POWER LDMOS TRANSISTOR (Polyfet RF Devices)
  • LP7100B - Tone siren (Silvan Chip)
  • LP721 - SILICON GATE ENHANCEMENT MODE RF POWER LDMOS TRANSISTOR (Polyfet RF Devices)
  • LP722 - SILICON GATE ENHANCEMENT MODE RF POWER LDMOS TRANSISTOR (Polyfet RF Devices)
  • LP7510 - PC Power Supply Supervisors (ETC)
  • LP75103122F - Lithium Iron Phosphate Battery (EEMB)
  • LP7568130F - Lithium Iron Phosphate Battery (EEMB)
Other Datasheets by Filtronic Compound Semiconductors
  • LP7612 - HIGH DYNAMIC RANGE PHEMT
  • LP750 - 0.5 W POWER PHEMT
  • LP750P100 - PACKAGED 0.5 WATT POWER PHEMT
  • LP750SOT89 - LOW NOISE/ HIGH LINEARITY PACKAGED PHEMT
  • LP7512 - ULTRA LOW NOISE PHEMT
  • LP7512P70 - PACKAGED ULTRA LOW NOISE PHEMT

Full PDF Text Transcription

Click to expand full text
PACKAGED HIGH DYNAMIC RANGE PHEMT • FEATURES ♦ 20 dBm Output Power at 1-dB Compression at 18 GHz ♦ 7.5 dB Power Gain at 18 GHz ♦ 16 dB Small Signal Gain at 2 GHz ♦ 0.8 dB Noise Figure at 2 GHz LP7612P70 • DESCRIPTION AND APPLICATIONS The LP7612P70 is a packaged Aluminum Gallium Arsenide / Indium Gallium Arsenide (AlGaAs/InGaAs) pseudomorphic High Electron Mobility Transistor (pHEMT), utilizing an Electron-Beam direct-write 0.25 µ m by 200 µ m Schottky barrier gate. The recessed “mushroom” Ti/Pt/Au gate structure minimizes parasitic gate-source and gate resistances. The epitaxial structure and processing have been optimized for high dynamic range.
