BY133 - General Purpose Silicon Rectifier

This page provides the datasheet information for the BY133, a member of the BY127 General Purpose Silicon Rectifier family.

Datasheet Summary

Features

  • High reverse voltage Low forward voltage drop Low reverse leakage High forward surge current capability High temperature soldering guaranteed: 260 C/10 seconds/0.375 " (9.5mm)lead length at 5 lbs (2,3kg) tension o DO-41 .034(0.9) .028(0.7) 1.0(25.4) MIN DIA. Mechanical Data Case: Transfer molded plastic Epoxy: UL94V-0 rate flame retardant Polarity: Color band denotes cathode end Mounting position: Any Weight: 0.3 5 gram .205(5.2) .165(4.2) .107(2.7) .080(2.0) 1.0(25.4) MIN DIA Dimensions i.

📥 Download Datasheet

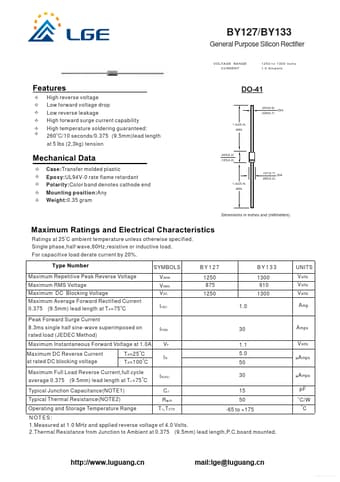

Datasheet preview – BY133

Datasheet Details

Part number BY133
Manufacturer Luguang Electronic
File Size 172.57 KB
Description General Purpose Silicon Rectifier
Datasheet download datasheet BY133 Datasheet
Additional preview pages of the BY133 datasheet.

📁 Similar Datasheet

  • BY133 - PLASTIC SILICON RECTIFIERS (PAN JIT)
  • BY133 - Sillicon Rectifier (UPM)
  • BY133 - GENERAL PURPOSE RECTIFIER (MEI SEMI)
  • BY133 - 1 Amp Rectifier (MCC)
  • BY133 - 1.0A Miniature Rectifier (SEP ELECTRONIC)
  • BY133 - Silicon Rectifiers (Diotec Semiconductor)
  • BY133 - SILICON RECTIFIER DIODES (EIC)
  • BY133 - AXIAL LEADED RECTIFIER DIODE (Sunmate)
  • BY133 - 1.0 SILICON RECTIFIER (SMC Diode)
  • BY133 - 1.0A HIGH VOLTAGE STANDARD DIODE (WON-TOP)
Other Datasheets by Luguang Electronic
  • BY127 - General Purpose Silicon Rectifier

Full PDF Text Transcription

Click to expand full text
BY127/BY133 General Purpose Silicon Rectifier VOLTAGE RANGE CURRENT 1250 to 1300 Volts 1.0 Ampere Features High reverse voltage Low forward voltage drop Low reverse leakage High forward surge current capability High temperature soldering guaranteed: 260 C/10 seconds/0.375 " (9.5mm)lead length at 5 lbs (2,3kg) tension o DO-41 .034(0.9) .028(0.7) 1.0(25.4) MIN DIA. Mechanical Data Case: Transfer molded plastic Epoxy: UL94V-0 rate flame retardant Polarity: Color band denotes cathode end Mounting position: Any Weight: 0.3 5 gram .205(5.2) .165(4.2) .107(2.7) .080(2.0) 1.0(25.4) MIN DIA Dimensions in inches and (millimeters) Maximum Ratings and Electrical Characteristics Ratings at 25 C ambient temperature unless otherwise specified.
