DB207 - Silicon Bridge Rectifiers

Product Overview

Luguang Electronic

Part number	DB207
Manufacturer	Luguang Electronic
File Size	162.75 KB
Description	Silicon Bridge Rectifiers
Datasheet	DB207 Datasheet
Note	This datasheet PDF includes multiple part numbers: DB207, DB203. Please refer to the document for exact specifications by model.

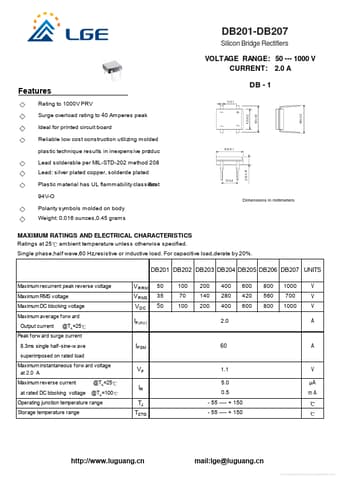

Additional preview pages of the DB207 datasheet.

Rating to 1000V PRV Surge overload rating to 4 0 Amperes peak Ideal for printed circuit board Reliable low cost construction utilizing molded plastic technique results in inexpensive produc t Lead solderable per MIL-STD-202 method 208 5± 0.2 2.5± 0.15 8.3± 0.1 1± 0.1 6.3± 0.2 DB - 1 Lead: silver plated copper, solderde plated Plastic material has UL flammability classificat ion 94V-O Polarity symbols molded on body Weight: 0.016 ounces,0.45 grams Dimensions in millimeters.
